THE OBSERVATORY BUILDING

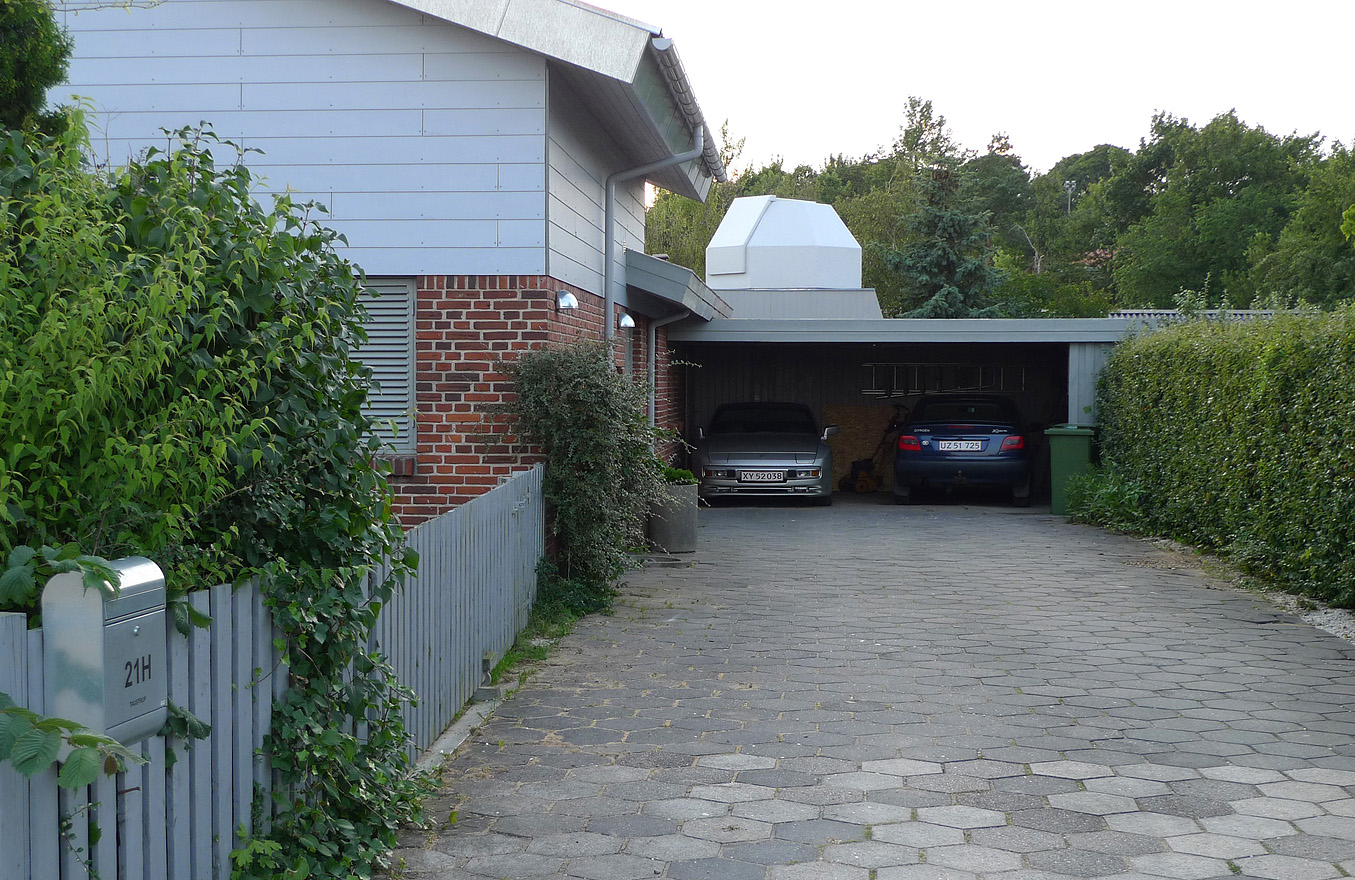

We started building our new observatory in the beginning of 2002 at a new site around 15 km's north of Aarhus. The outside was finished on the 20th. of July the same year. Here you can se it from the drive way.

THE TELESCOPE

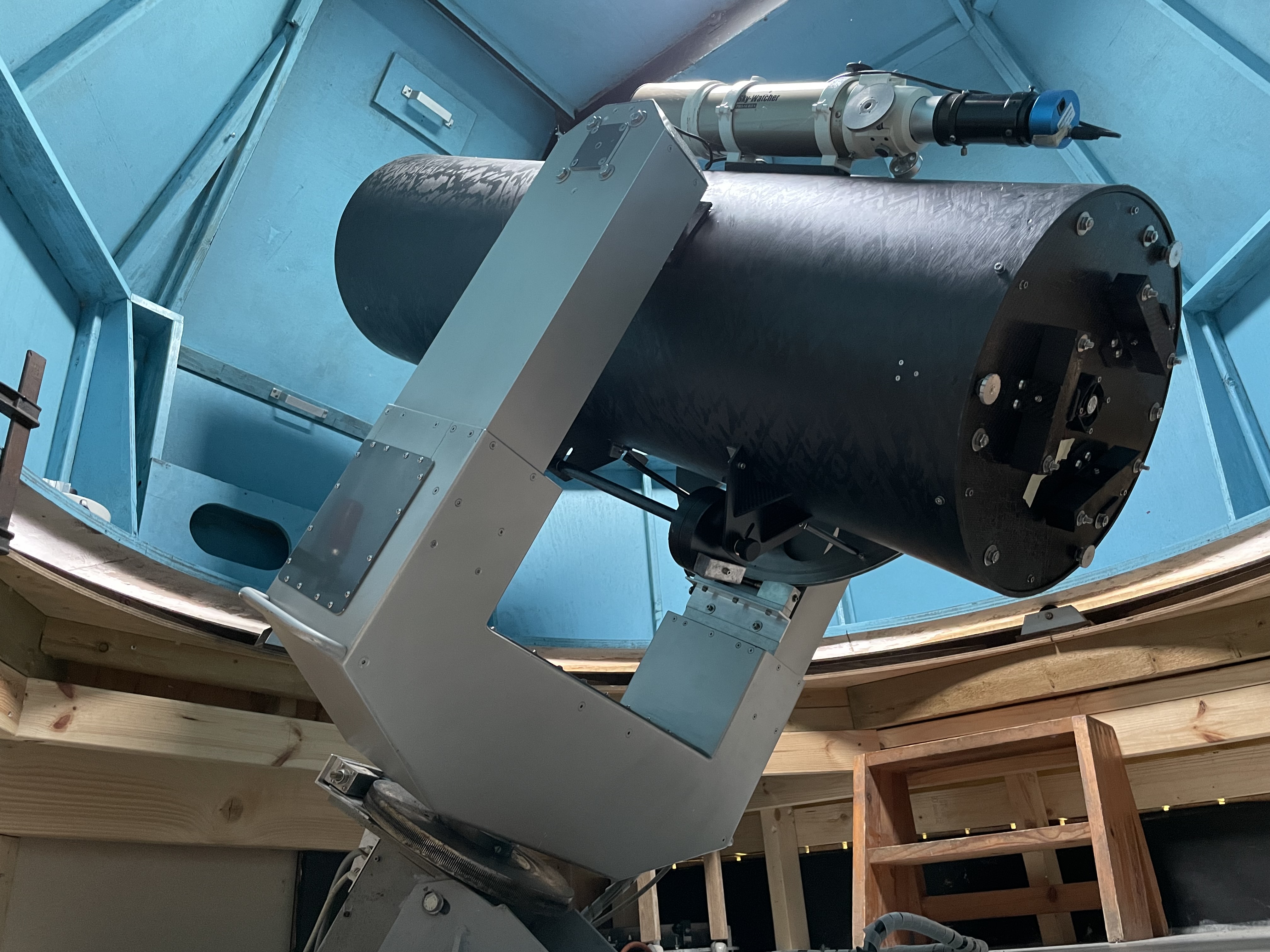

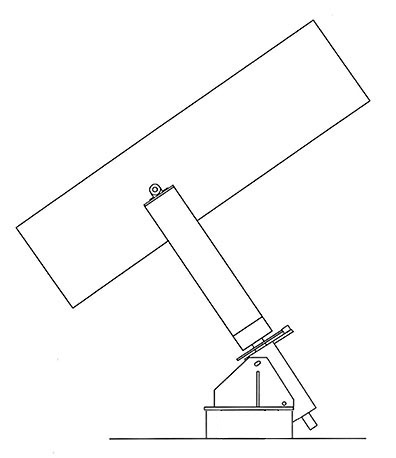

In the observatory we have a 12.5 inch f:5 computer controlled Newtonian reflector .
We started building it in 1999 - we bought the optics and made the rest ourselves.
You can find more information about this project under "Articles in danish" further down on this page.

The Guide Scope

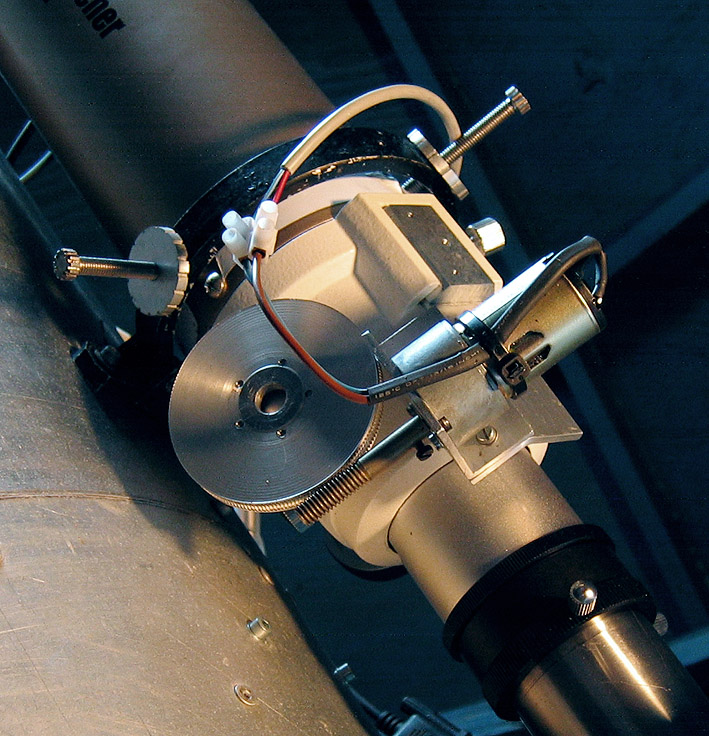

The guide scope is homebuild. The lens is a 80 mm fl:890 mm Apo-Nikkor. The refractor has build in motorfocus

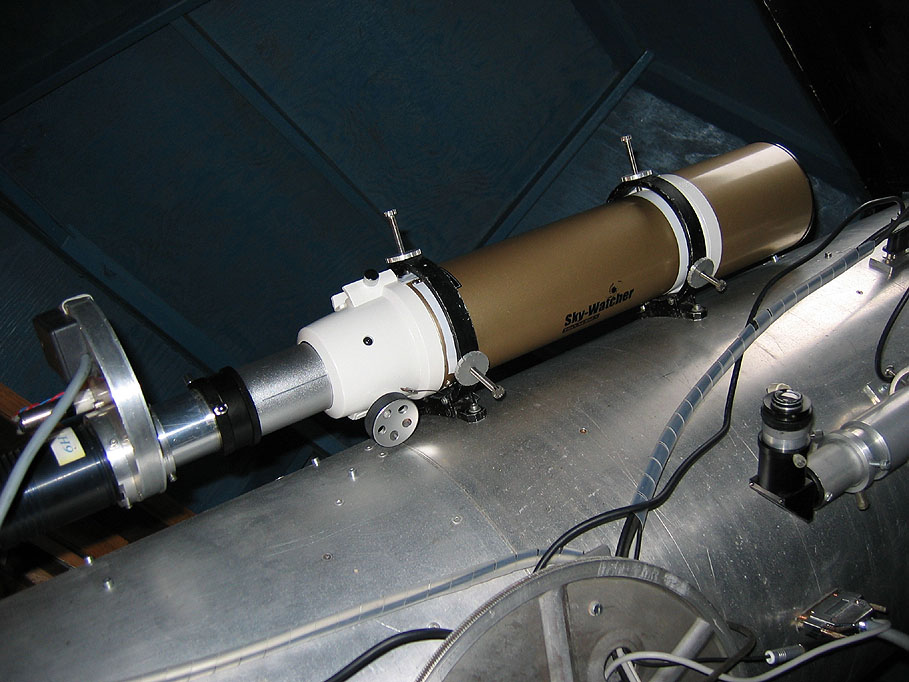

The new photographic telescope - Oct. 2006
The Sky-Watcher telescope is a short focal length refractor. Aperture: 80 mm f/7.5 ED.
For remote focusing the telescope is equipped with a motor focus device - home build of course.
Some of the first images: M-31 The Moon

THE CCD CAMERA
August 20th 2004 we got our new Starlight XPress SXV H9 CCD camera. The H9 is a b/w camera featuring 1392 x 1040 pixels and operating with a pixel size of 6.4 um
Link to Starlight XPress SXV H9 home page

Astronomiens år 2009 - nyhedsbrev

ASTRO PHOTOGRAPHY

We do a lot of astro photography - until October 1997 it was entirely on photographic film - hypered TP2415 and using MWP-2 developer. In 1997 we finished building our Cookbook CCD camera. Link to building project article further down the page.


IMAGE GALLERY


ARTICLES
Article in S&T

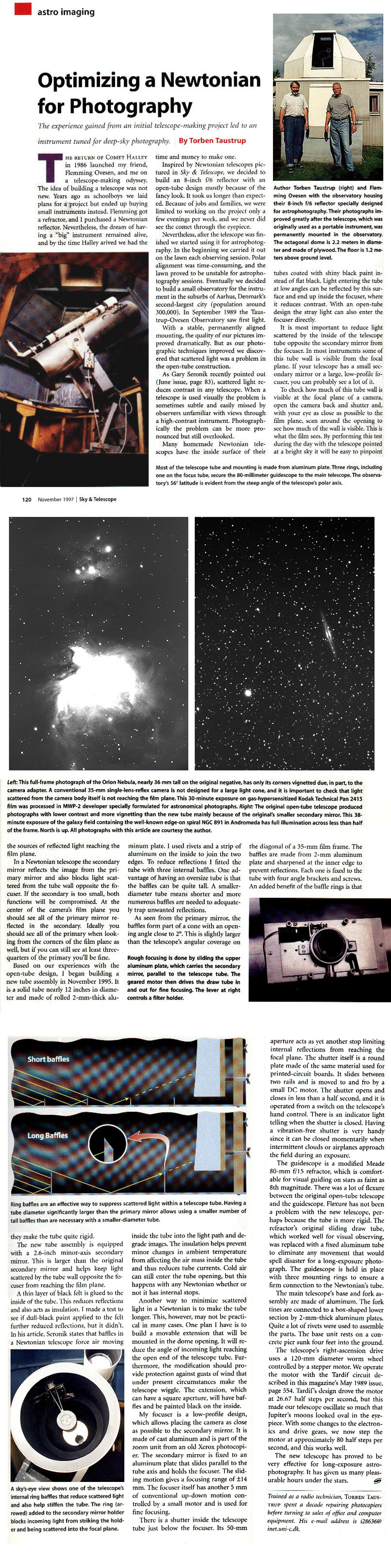

If you are interested in more information about TOC Observatory, check out Sky & Telescope November 1997 issue, page 120: "Optimizing a Newtonian for Photography".
Article:
Page 1.
Page 2.
Page 3 and 4.
One page: 400 - 500 kb



The Cookbook CCD Camera Page


Artikler på dansk
(Articles in Danish)

Hvorfor er billedet uskarpt? En artikel der mest handler om Schmidt-Cassegrain- og Maksutov teleskoper

Stor åbning, CCD optageteknik og billedbehandling

Strålegangen i en Newton og bestemmelse af sekundærspejlets størrelse

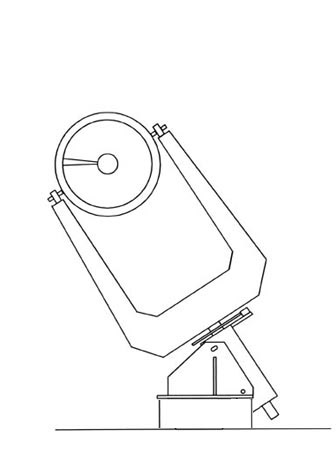

Projekt 12,5" Newton

En solid gaffel - et projekt i beton - 1. del.

En solid gaffel - et projekt i beton - 2. del, støbningen.

12.5" f:5 Newton projektet - 3. del. Overview

12.5" f:5 Newton projektet - 4. del, Tubus.

12.5" f:5 Newton projektet - 5. del, Spejlcellen

12.5" f:5 Newton projektet - 6. del, Fokuseringsenheden

12.5" f:5 Newton projektet - 7. del, Snekkehjul

12.5" f:5 Newton projektet - 8. del, Testkørsel

12.5" f:5 Newton projektet - 9. del, Styreelektronikken

12.5" f:5 Newton projektet - 10. del, 1. prøvekørsel i observatoriet

12.5" f:5 Newton projektet - 11. del, First Light

12.5" f:5 Newton projektet - 12. del, Nye stepmotorer

12.5" f:5 Newton projektet - 13. del, Nye snekker og snekkehjul

12.5" f:5 Newton projektet - 14. del, Hvad har vi lært?

Projekt Filterhjul

Projekt farvefilterhjul - et farvefilterprojekt - 1. del.


Projekt Observatorium

1. del - Planlægningsfasen

2. del - Byggeprojektet starter

3. del - Bygning af træskelettet

4. del - Bygningen beklædes

5. del - Kuplen ombygges

6. del - Kuplen sættes op

7. del - Det indvendige

8. del - Opstilling af teleskopet
